Dears,
How do you calculate New LTE Carrier DlEarfcn
in case current LTE carrier Bandwidth to be expanded or UL Refarming
which tool you use for this
Dears in Atoll LTE Kindly explain the following. My allotted EARFCN is DLEARFCN 9610 and ULEARFCN 27610 with bandwidth 10 MHZ. Kindly help in configuring the bands and explain a bit about step size and all. Thanks for your time
Hi!

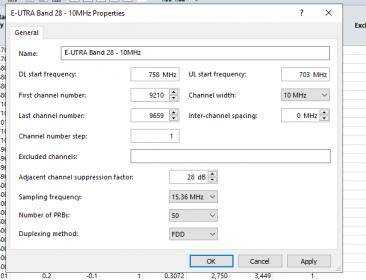

try it like this.
| Name | Duplexing Method | TDD: Start Frequency, FDD: DL Start Frequency (MHz) | FDD: UL Start Frequency (MHz) | Channel Width (MHz) | Inter-Channel Spacing (MHz) | Number of PRBs | Sampling Frequency (MHz) | Centre EARFCN of the First Channel | Centre EARFCN of the Last Channel | Step | Excluded Channels | Adjacent Channel Suppression Factor (dB) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E-UTRA Band 28 - 10MHz | FDD | 793 | 738 | 10 | 0 | 50 | 15,36 | 9 610 | 9 660 | 100 | 28,23 |
any idea, regarding this inquiry
you can use this tool: 4G LTE EARFCN calculator | 5G-Tools.com
or create a table in EXEL with channels and frequencies.
DlEarfcn - this is the center channel of your carrier
